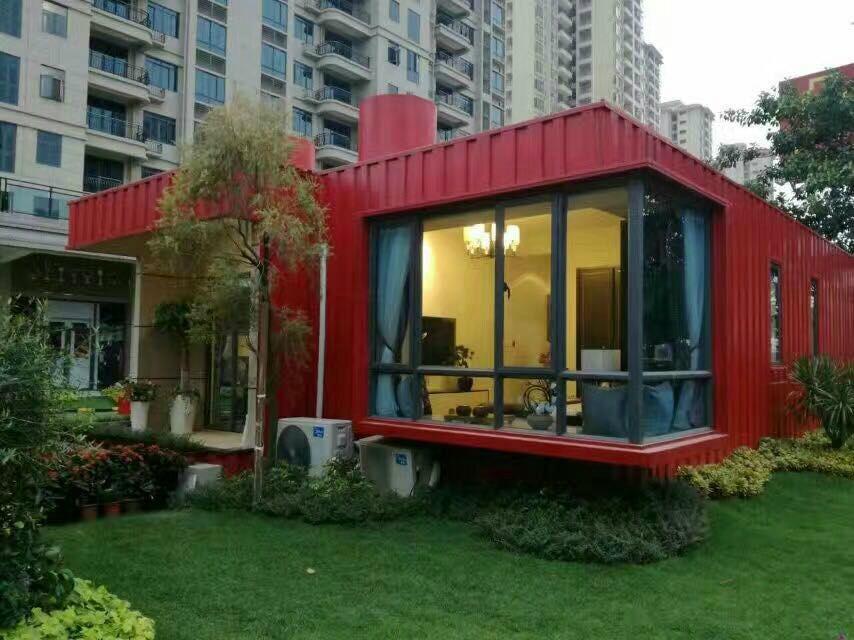

20/40ft standard expandable container house is kind of modular house, using light steel as main structure, can be used for site building, residential living or commercial accommodation
1. Closed size: 5850x2250x2500mm
2. Opened size: 5850x6300x2500mm
Specifications:
1. Frame structure 2.0-4.0mm cold formed profile steel/square tube
2. Polishing/derusting
Primer coat: epoxy zinc-rich primer two layers
Finishing coat: alkyd honed painting as per your requirements
3. Roof 2-3mm bending steel plate
4. Ceiling 12mm gypsum board/12mm PVC ceiling/50mm color steel sandwich panel (optional as 16mm carved metal insulation board)
5. Wall50/75/100mm PU/EPS/glass wool/rool wool sandwich panel
6. Flooring 15mm CCA cement fiber board + 2mm PVC floor (optional as 12/18/20mm CCA+10mm composite wood)
7. Door sandwich panel door or steel door/stainless steel door
8. Window PVC sliding window (4mm thickness glass) or aluminum window
9. Packing: flat down packing
10: Loading: 6-8 sets 20ft container house can be loaded in 1x40ft HQ
Technical parameters:
1. Temperature resistance: (-45°C) to 50°C
2. Earthquake resistance: grade 8
3. Wind resistance: 100kph
4. Floor live load: 2kN/m2
5. Roof live load0.5KN/m2
6. Life spanmore than 15 years
Advantages:
1. Easy to install: 5 people can finish installation in 15 minutes
2. Easy to move, you can use forklift or crane to move it easily
3. Service life: 20 years
4. Environment protection and saving energy, no construction waste, reusable, materials can be recycled
5. Compared with traditional construction cost saving more than 50%
6. Light and reliable, steel structure is strong and firm
7. Nice capacity of waterproof, moisture proof and heat insulation and sound insulation
8. Diversified specification: our design can be customized, doors, windows and front and back walls can be exchanged each other and the partition walls according to the customer's requirements
9. Practical, good space utilization and high price performance
